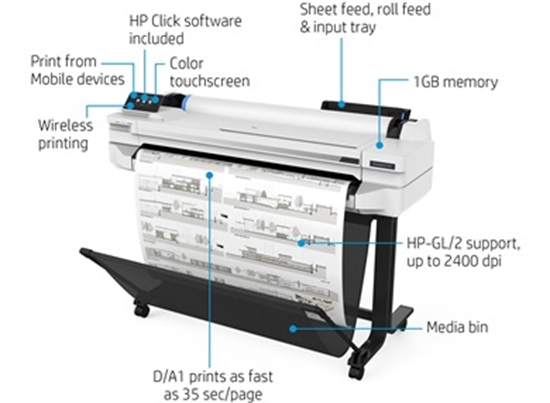

HP PLOTTER DESIGNJET T525 36'' A0, 35 SEC/PAGE ON A1, 70 A1 PRINTS PER HOUR, 2400X1200 DPI, 1GB, ROLL FEED, CUTTER, STAND, 4 INKS, USB, WIFI, LAN, 1 Year Warranty
Functions
Print
Model size
914 mm (36 in)
Print speed
35 sec/page on A1; 70 A1 prints per hour[1]
Print technology
HP Thermal Inkjet
Printer drivers included
Raster driver for Windows
Print quality color (best)
Up to 2400 x 1200 optimised dpi
Print languages
HP-GL/2, HP-RTL, JPEG, CALS G4
Number of print cartridges
4 (C, M, Y, K)
Ink types
Dye-based (C, M, Y); pigment-based (K)
Line accuracy
±0.1%[2]
Maximum optical density (black)
8 L* min/2.10 D[3]
HP ePrint capability
No
Connectivity, standard
Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi
Network ready
Standard
Memory
1 GB
Internal Storage
None
Finished output handling
Sheet feed, roll feed, input tray, automatic horizontal cutter
Media sizes standard (metric rolls)
279 to 914 mm rolls (11 to 36 in)
Media sizes, custom
Input tray: 210 x 279 to 330 x 482 mm (8.3 x 11 to 13 x 19 in); Manual feed: 330 x 482 to 914 x 1897 mm (13 x 19 to 36 x 74.7 in)
Media types
Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended
60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)
Roll external diameter
100 mm
Media thickness
Up to 11.8 mil
Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption
< 35 W (printing), < 6 W (ready), < 4.5 W (sleep), < 0.3 W (standby)
ENERGY STAR® certified
Yes
Operating temperature range
5 to 40ºC (41 to 104ºF)
Minimum dimensions (W x D x H)
1292 x 530 x 932 mm (50.9 x 20.9 x 36.7 in)
Weight
39.2 kg (86.4 lb)
Package dimensions (W x D x H)
1400 x 565 x 590 mm (56 x 22.7 x 24.6 in)
Package weight
62 kg (136.7 lb)
What's in the box
•HP DesignJet T525 36-in Printer •Printer stand •Printhead •Introductory ink cartridges •Quick reference guide •Setup poster •Power cord
Software included
•HP Click •HP DesignJet Utility for Windows •HP Smart app •HP Poster Web app
Warranty
T525: One-year limited hardware warranty; T530: Two-year limited hardware warranty
Overview
1
Most compact footprint based on competitive alternatives with comparable size and features as of February 2019.
2
Compared to other HP DesignJet T-series plotters, as of February 2019.
3
Compared to other large-format technical printers’ brands among micro and small business decision-makers. Based on results from the LFD Brand Health Study led by LightSpeed, as of January 2019.
