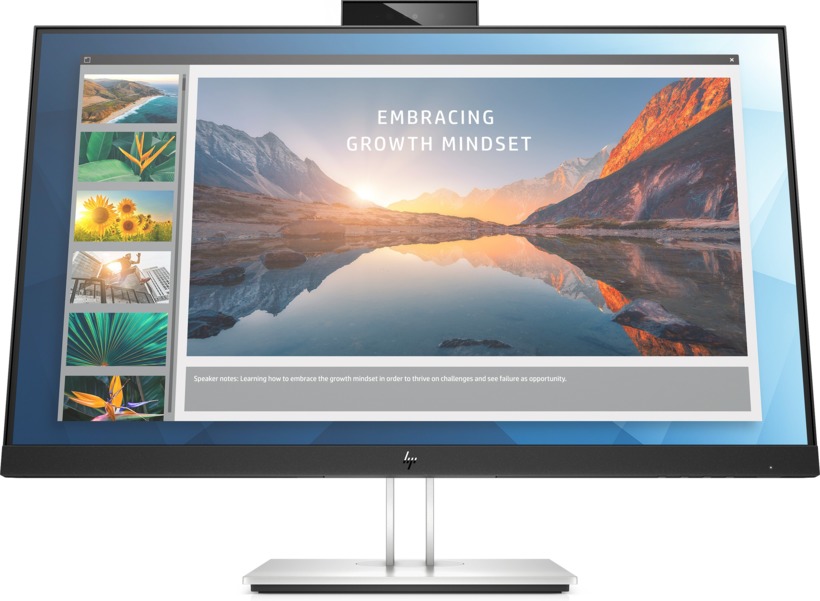

HP MONITOR 23.8'', ELITE E24D G4 BUSINESS DOCKING W/LAN, IPS, FHD 1920X1080, 5MS, 250CD/M², CAM, HEIGHT ADJUSTABLE, PIVOT, SWIVEL, TILT, RJ45, HDMI, DISPLAY PORT, 4USB 3.0, USB TYPE-C, 3YW
Display size (diagonal)
23.8"
Panel technology
IPS
Aspect ratio
16:9
Native resolution
FHD (1920 x 1080)
Resolutions supported
1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 800; 1440 x 900; 1600 x 900; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 800 x 600
Pixel pitch
0.274 mm
Brightness
250 cd/m²
Contrast ratio
1000:1 static; 5000000:1 dynamic
Response time (typical)
5 ms gray to gray
Display features
Advanced haze; Anti-glare; On-screen controls; Pivot rotation; Plug and Play; Height adjustable; Low blue light mode; Single Power ON; Network Manageability; IR webcam
Display scan frequency (horizontal)
Up to 80 kHz
Display scan frequency (vertical)
Up to 60 Hz
Onscreen controls
Brightness; Color control; Image control; Information; Input source; Management; Menu; Power
Physical security
Security lock-ready
Ports
1 RJ-45; 1 DisplayPort™ 1.2-out; 1 USB Type-C™ (downstream); 4 USB 3.1 (downstream, fast charging 7.5 W)
Power
Input voltage 100 to 240 VAC
Power consumption
175 W (maximum), 70 W (typical), 0.5 W (standby)
Operating temperature range
5 to 35°C
Environmental
Arsenic-free display glass; Low halogen; Mercury-free display backlights
Minimum dimensions (W x D x H)
53.94 x 32.33 x 4.85 cm(Without stand.)
Dimensions With Stand (W x D x H)
53.94 x 49.44 x 4.85 cm
Weight
6.86 Kg
UPC number
193808614972
Package dimensions (W x D x H)
64.6 x 43.8 x 26.9 cm
Package weight
11.5 kg
What's in the box
•Monitor •AC power cord •DisplayPort™ 1.2 cable •Documentation •HDMI cable •USB Type-C™ cable •QSP
Warranty
3 year limited warranty including 3 year of parts and labour. Certain restrictions and exclusions apply.
Overview
1
Video over USB-C™ requires a PC with USB-C™ DisplayPort™ Alt mode or Thunderbolt™. Thunderbolt™-enabled notebooks will function at USB-C™ speeds. Power delivery over upstream USB-C™ up to 100 Watts. Power delivery over downstream USB-C™ up to 15 Watts. Refer to Power Output in product QuickSpecs for exact specifications, PC must be compatible with the display's power output.
2
For video over USB-C™ functionality, host PC must support the DisplayPort™ Alt mode protocol through its USB-C™ port. Thunderbolt™-enabled notebooks will function at USB-C™ speeds. Charging and port replication is supported on notebooks that have implemented USB-C™ industry specifications. Power button to turn on or wake the system, Wake-on LAN from warm and cold dock, Wake-on LAN from S4/S5, and MAC Address Pass-Through in S0, S3, S4, S5 warm and cold dock features only function on HP or HP-supported notebooks. HP does not provide Ethernet and audio drivers on Mac PCs.
p.n. 6PA50AA
